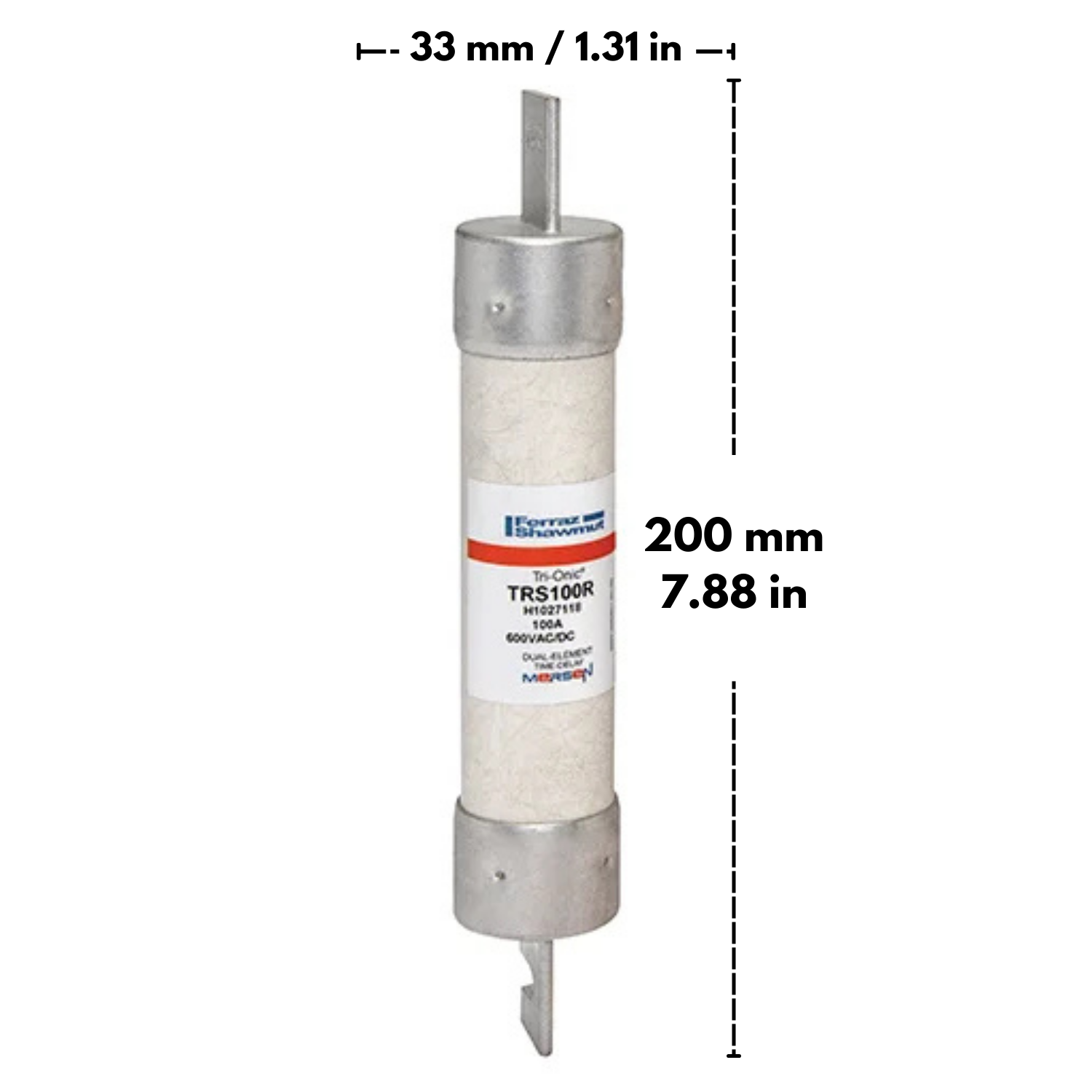

• Mersen TRS100R Dimensions, Measurements
1 3
Mersen Logo

TRS100R

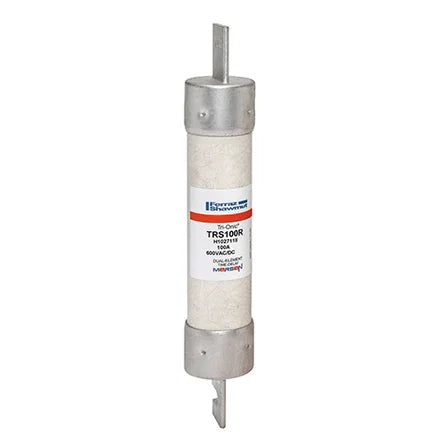

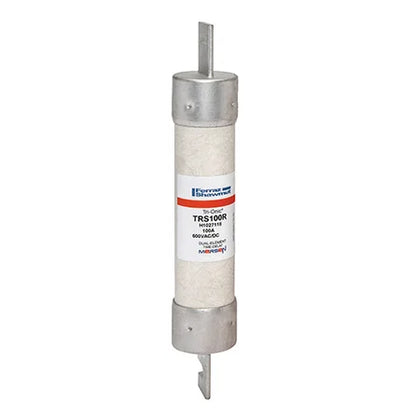

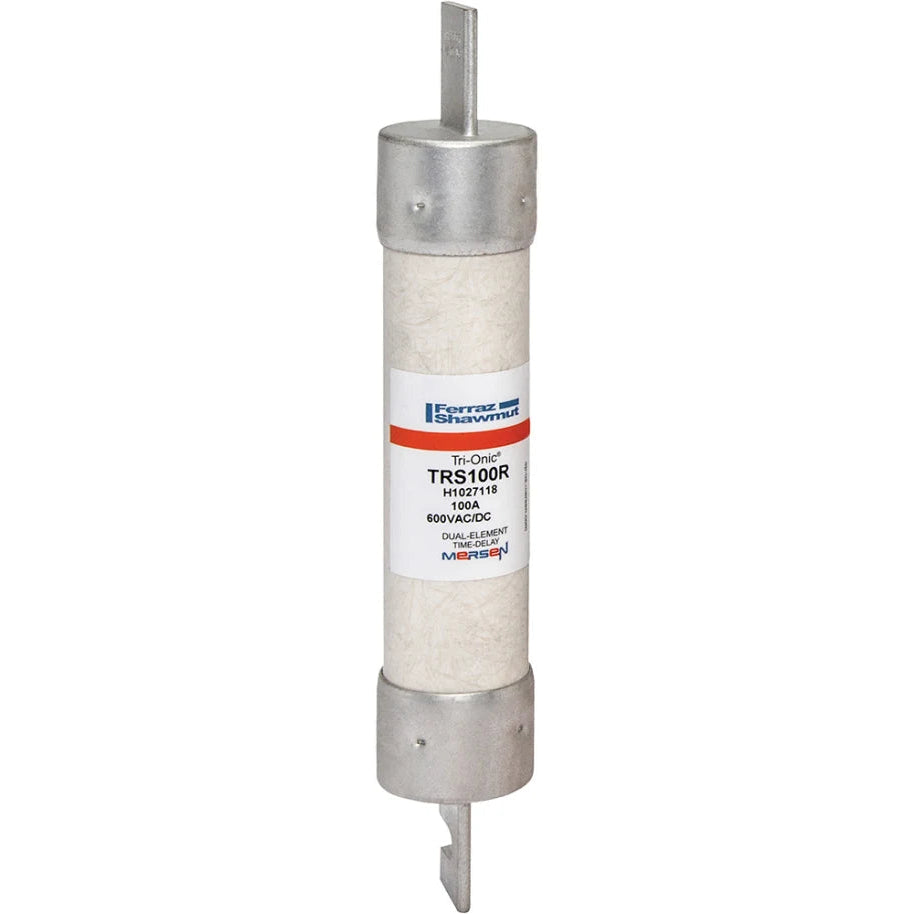

TRS100R | Mersen Class RK5 Time-Delay Fuse 100A 600VAC

TRS100R | Mersen Class RK5 Time-Delay Fuse 100A 600VAC

$29.00 CAD
$40.00 CAD $29.00 CAD
Sale Sold out

In stock

The TRS100R fuse from the Tri-Onic® TRS-R series is a Class RK5, time-delay, current-limiting fuse designed for the protection of motors, transformers, feeders, and branch circuits. With a 100A rating and compatibility for both 600V AC and 600V DC systems, this fuse is ideal for applications requiring reliable performance under high inrush or starting currents.

Its time-delay feature allows harmless temporary overcurrents while providing superior protection against sustained overloads and short circuits. The TRS100R fuse features blade-style terminals and mounts with clip-type holders. Trusted for industrial and commercial settings, it meets UL and CSA requirements for Class RK5 fuses.

Specifications

Item Number TRS100R
Fuse Class Class RK5
Type Time-Delay
Ampere Rating 100 A
Voltage Rating 600 VAC / 600 VDC
Interrupting Rating (AC) 200 kA
Mounting Type Clip
Terminal Type Blade
Product Diameter 33.4 mm
Product Length 200.2 mm
Frequency 50/60 Hz
Standards UL Listed, CSA Certified

Documents


View full details

Technical Specifications

Fuse Series:
TRS-R
Amperage Rating:
100A
Fuse Class:
Class RK5
Voltage:
600VAC, 600VDC
Fuse Response Type:
Time-Delay
Current Rating (SCCR):
200kA
Fuse Length:
7.88 in
UPC:
782001749118
Manufacturer type:
Genuine
Item condition:
New
