SKU:PKA36040U64BE1YV

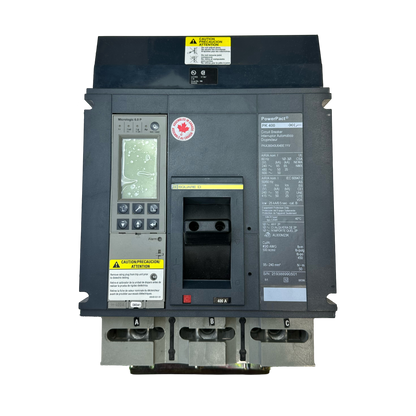

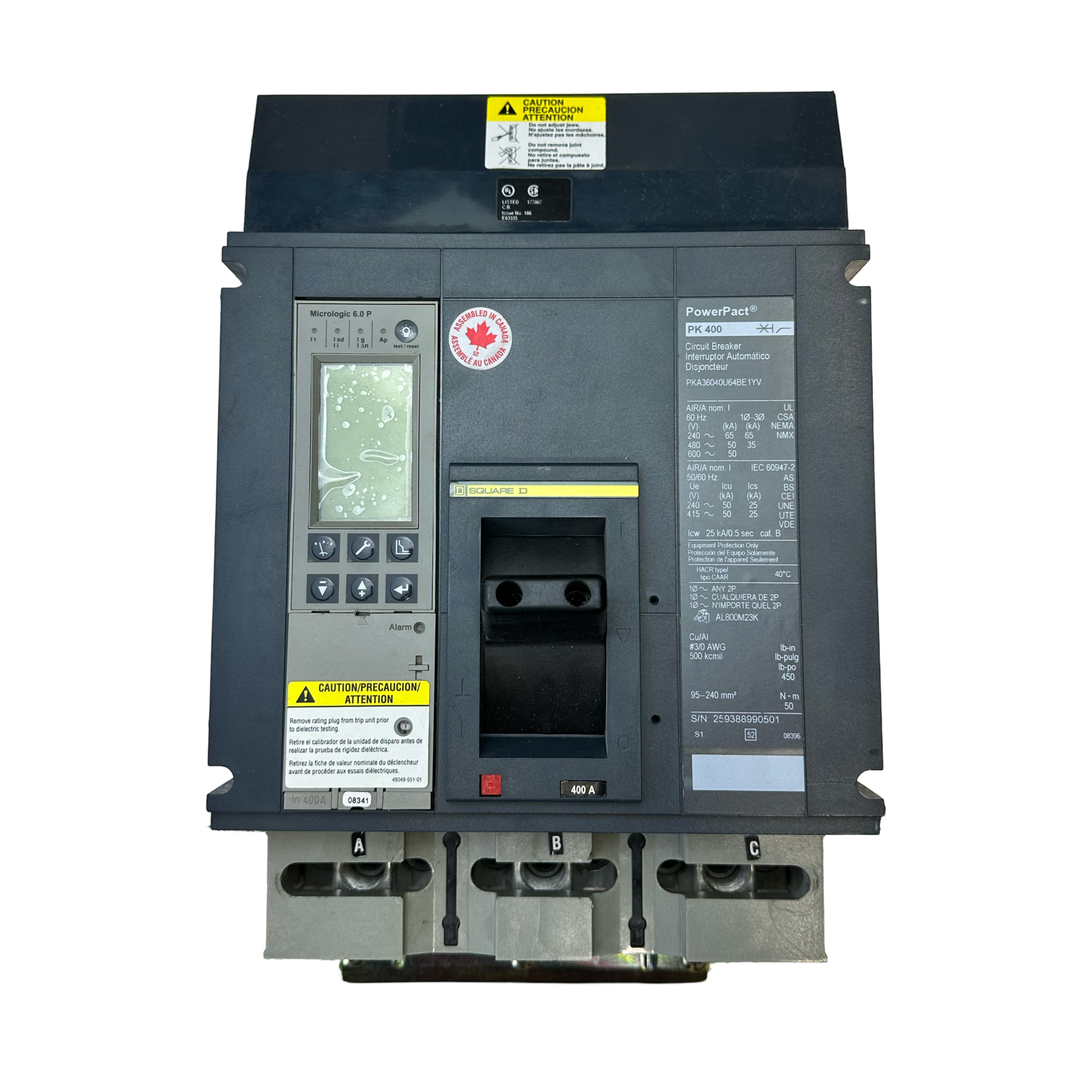

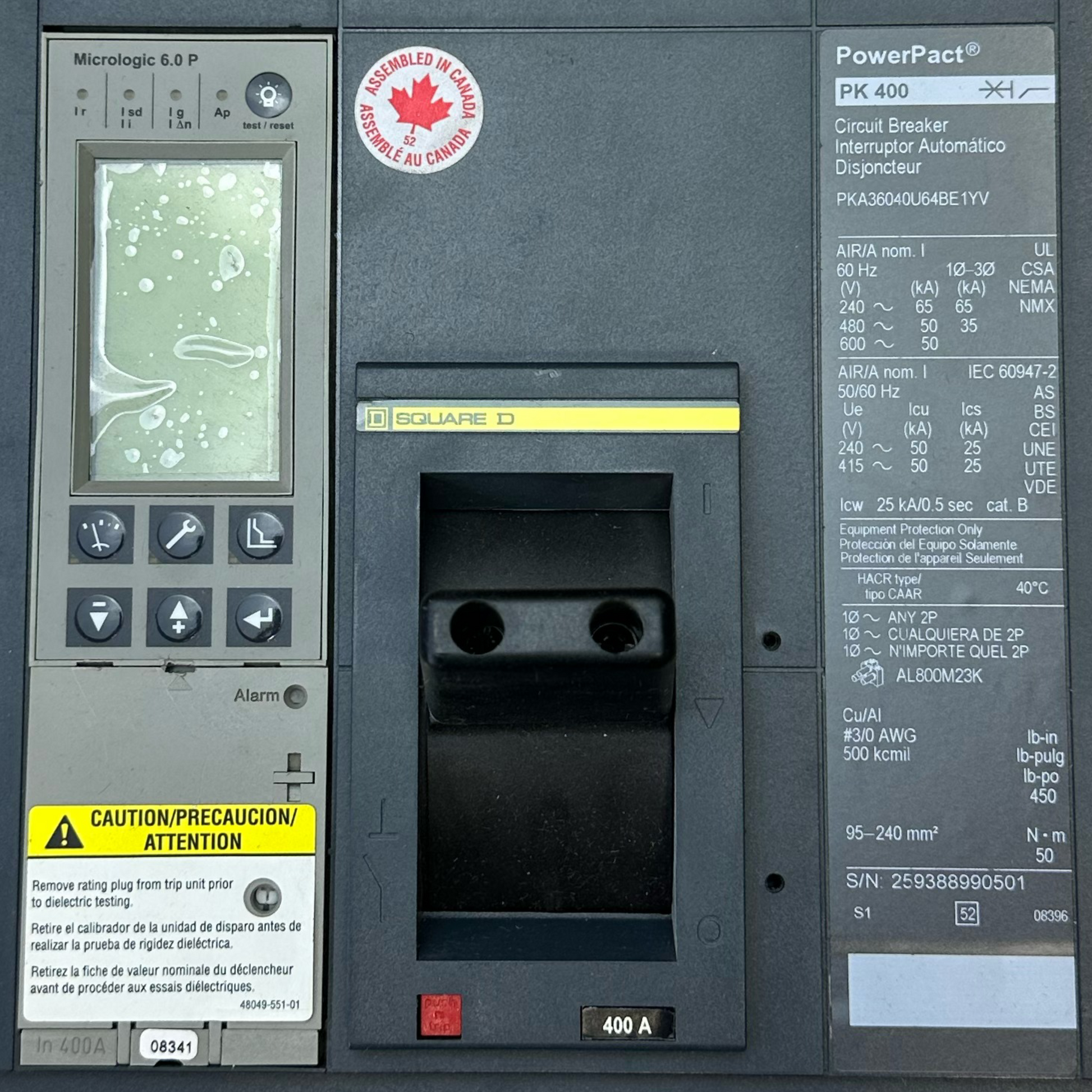

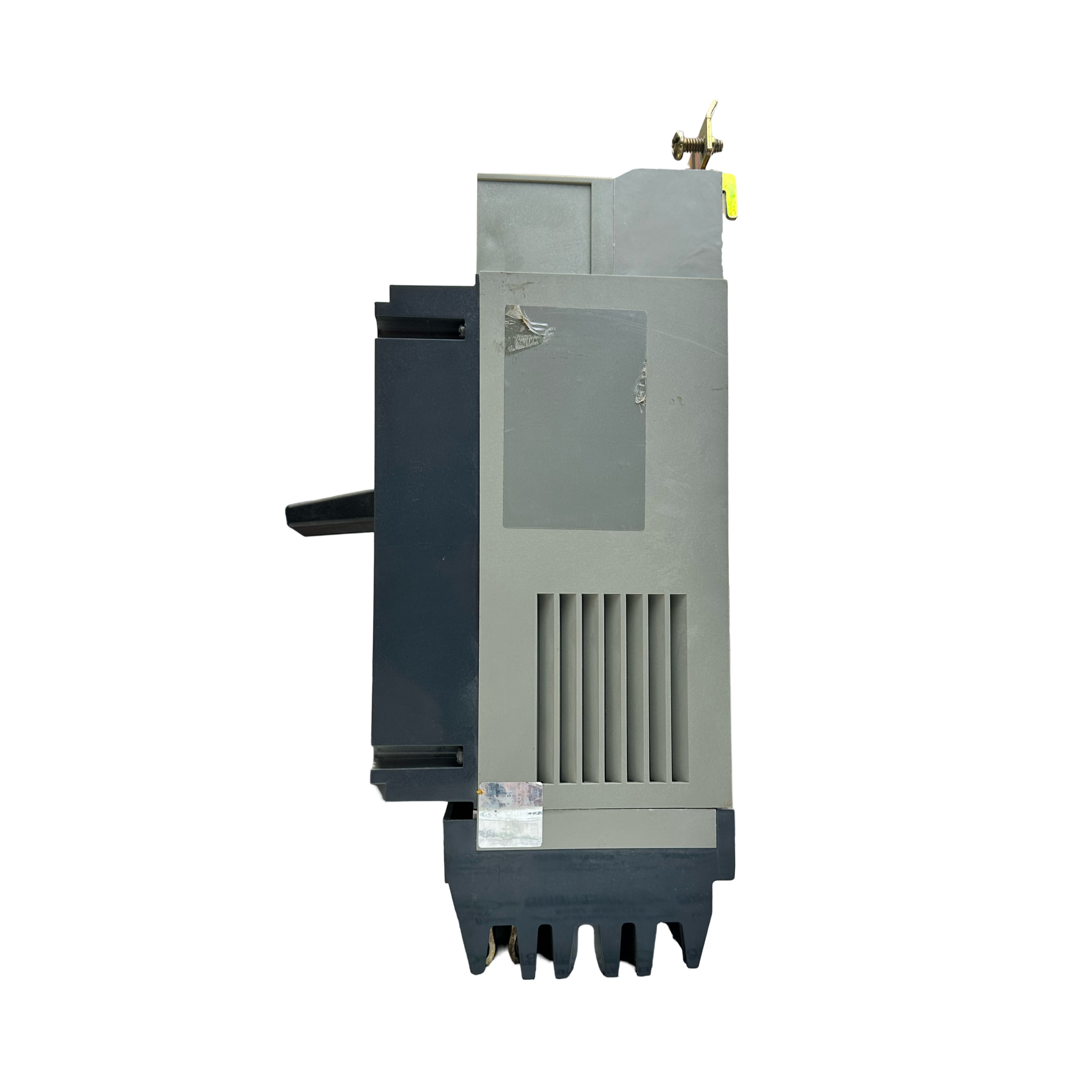

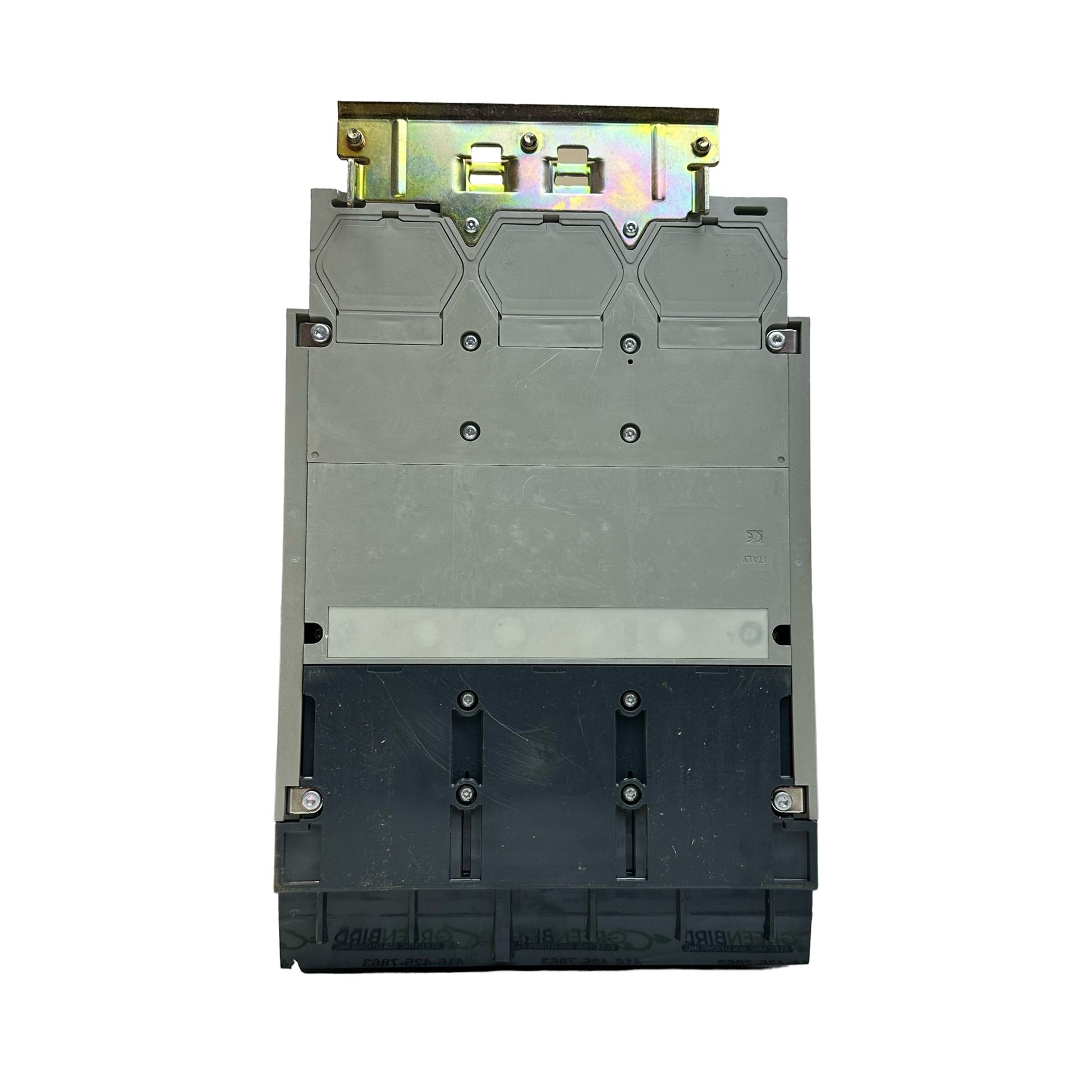

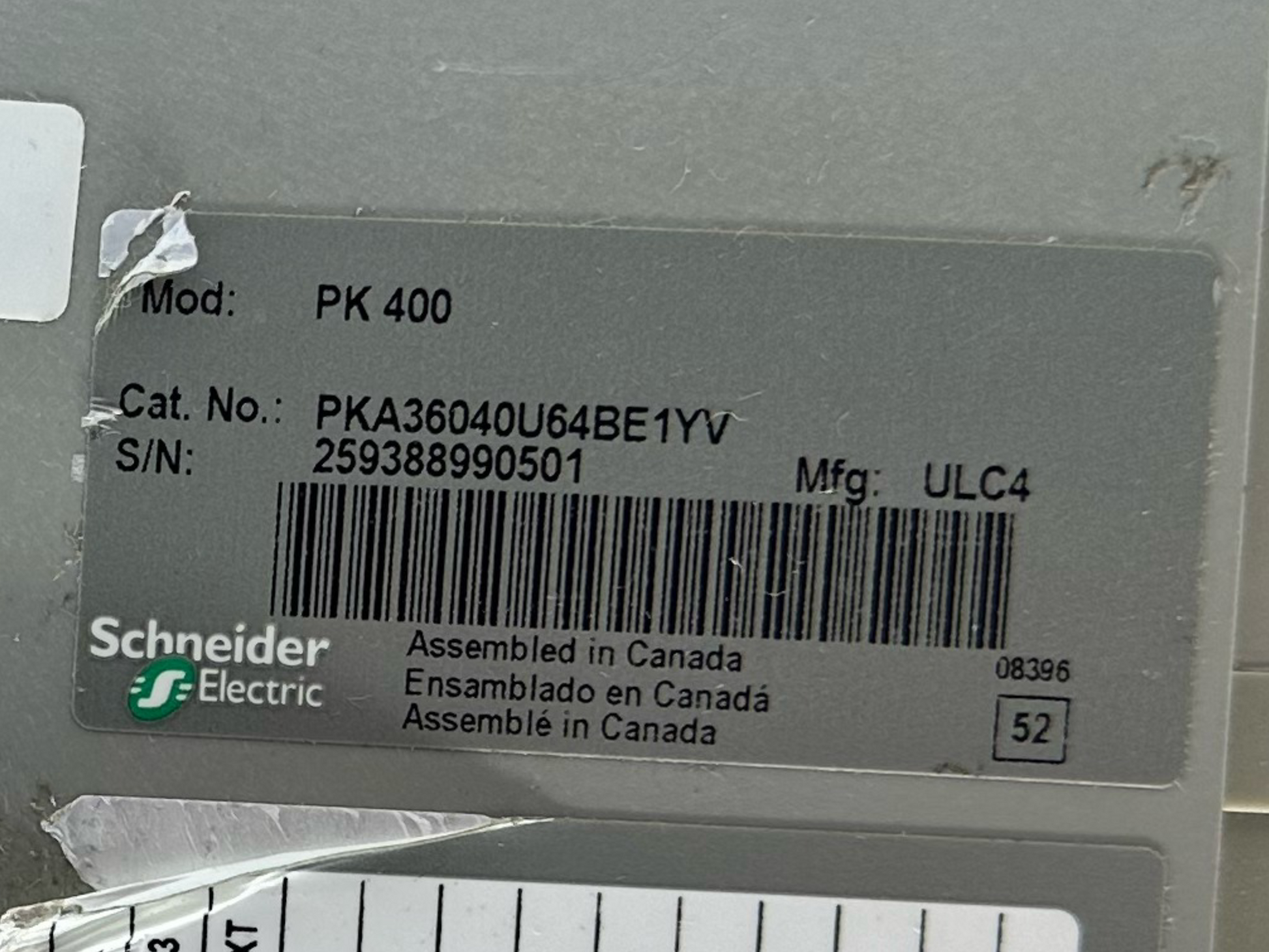

Square D PowerPact PKA36040U64BE1YV P-Frame Molded Case Circuit Breaker, 400A, 3 Pole, 600VAC, I-Line, Micrologic 6.0P Trip Unit

Square D PowerPact PKA36040U64BE1YV P-Frame Molded Case Circuit Breaker, 400A, 3 Pole, 600VAC, I-Line, Micrologic 6.0P Trip Unit

Regular price $12,254.00 CAD
Regular price $16,000.00 CAD Sale price $12,254.00 CAD
Sale Sold out

Low stock: 1 left

Trusted & Secure Payments

Shop with confidence! Your transactions are protected with industry-standard encryption for a safe and secure checkout experience.

Free GTA Shipping on Orders Over $250

30-Day Return Policy

Thank you for shopping with us! We want you to be completely satisfied with your purchase. If you need to return a product, please review the following guidelines and instructions.


1) Return Window

You may request a return within 30 days of receiving your item.

2) Eligibility

To be eligible, items must be:

New, unused, and uninstalled, in the original packaging with all tags, accessories, manuals, and parts.
In resaleable condition (no markings, labels, writing, or damage to product or packaging).
Accompanied by a receipt or proof of purchase.

Note: Installed/energized electrical products are not returnable. This includes items that have been wired, powered, mounted, cut, crimped, soldered, or modified.

3) Start a Return (RMA Required)

Email info@greenbirdes.com with your order number, item(s), and reason for return.
We’ll review and, if eligible, issue an approval with instructions.
Do not ship items back without an approval — packages without an approval or RMA may be refused.

Unless the return is due to our error (wrong item, DOA/defective, or shipping damage reported on time), return shipping is the customer’s responsibility.

4) Damages, Defects & Shortages

Inspect your order upon delivery. Report shipping damage, defects, or shortages within 48 hours of receipt to info@greenbirdes.com. We will no longer be responsible for claims after this time.

Keep all packaging and take clear photos of the box, packing materials, labels, and the product.
We may coordinate a carrier inspection and provide next steps.
We’ll repair, replace, or refund at our discretion once the claim is validated and the item is returned per instructions.

5) Non-Returnable / Final-Sale Items

Breakers, fuses, and special-order items (including items we do not normally stock, factory builds, and vendor-direct shipments).
Cut-to-length or customized products (e.g., wire/cable cuts, tape/COB light cuts, custom assemblies, made-to-order finishes).
Opened consumables (bulbs/lamps, chemicals, adhesives) and batteries once installed/activated.
Any item installed, modified, or not in original packaging.

If a non-returnable item arrives damaged/defective, report it within the timeframe above so we can assist under the manufacturer or shipping claim process.

6) Restocking Fees

We do not generally charge restocking fees for online returns. However, we reserve the right to apply a 25-50% restocking fee in certain situations:

A return is requested on orders that have already been shipped out or delivered.

The product packaging has been opened or handling is required to restore the item to resaleable condition.

Special-order/vendor-direct items (if permitted by the vendor) may carry a vendor restocking fee of 50% plus any vendor return freight.

All fees are deducted from the refund.

7) Shipping Costs

Outbound shipping is non-refundable.
If your order qualified for “free shipping,” we may deduct our actual outbound shipping cost from the refund.
Return shipping is customer-paid unless the return is due to our error.

8) Exchanges

For the fastest turnaround, return the original item (once approved) and place a new order. We’ll process the return per this policy.

9) Refunds

After the return is received and inspected, we’ll email you the approval status.

Approved refunds are issued to the original payment method within 10 business days.
Your bank or card issuer may require additional time to post the credit.

If more than 15 business days have passed since approval, contact info@greenbirdes.com.

10) Warranties

Many products are covered by a manufacturer’s warranty. If a defect arises after installation/use, contact us with details and proof of purchase; we’ll help initiate a warranty claim per the manufacturer’s terms.

11) Incorrect Address / Refused Delivery

Shipments returned due to incorrect/undeliverable addresses or refused delivery may incur reshipping charges and/or restocking fees.




Green Bird Electric Solutions Inc.
39 Cranfield Rd, East York, ON M4B 1Z1 • +1 (416) 425-7863 • info@greenbirdes.com

The Schneider Electric / Square D PowerPact PKA36040U64BE1YV is a high-performance P-Frame circuit breaker designed for industrial and commercial applications. With a 400A continuous current rating and a 600V AC system voltage, this breaker ensures reliable protection against overloads and short circuits.

Featuring a Micrologic 6.0P trip unit for protection and power metering, the PowerPact P circuit breaker provides 50kA interrupting capacity at 600V AC. Designed with an I-Line connection and external voltage sensing, it is ideal for demanding power distribution systems.

Key Features:

  • High Current Rating: 400A continuous current rating
  • Voltage Protection: Rated for 600V AC applications
  • Interrupting Capacity: 50kA @ 600 VAC
  • Micrologic 6.0P Trip Unit: Advanced protection with power metering
  • I-Line Connection: Enables quick and secure installation
  • Modbus Communication: Equipped with Modbus BCM for seamless integration
  • External Voltage Sensing: Enhances system monitoring and efficiency
  • Durable Construction: Built for industrial-grade performance
  • UL Listed: Complies with industry safety and performance standards

Specifications

Field Description Code Description
Brand Name (blank) Square D
Circuit Breaker Frame P 1200A Max.
Interrupting Rating K 50kA @ 600 VAC
Connection A I-Line
Poles 3 3-Pole
Voltage Rating 6 System Voltage
Amperes Rating 040 400A Circuit Breaker Rating
Standard Rating or 100% Rated (none) Standard Rating
Circuit Breaker Trip System U64 Micrologic 6.0P Trip Unit
Rating Plug B Type B Switch Setting Cat. No. S48819
(0.4/0.44 /0.5/0.63/0.75/0.88/0.95/1.0)
Modbus Communication E1 Modbus BCM
I-Line Phasing YV External Voltage Sensing

    Documents

    Product Condition

    This product is new surplus and comes in alternative packaging. It is fully functional, in excellent condition, and ready for immediate use.


    Manufacturer Disclaimer

    Green Bird Electric Solutions Inc. is not an authorized dealer, distributor, or affiliate for the manufacturers of this product. Some products offered on our website are used surplus items and may have older date codes or be from an older series than what is currently available directly from the manufacturer or authorized dealers.

    Because we are not an authorized distributor for these products, the Original Manufacturer’s warranty does not apply. These items are sold as-is, and while we ensure they are fully functional and in accurate condition at the time of sale, we do not provide warranty. All sales of surplus items are considered final.
