SKU:2510MCO3

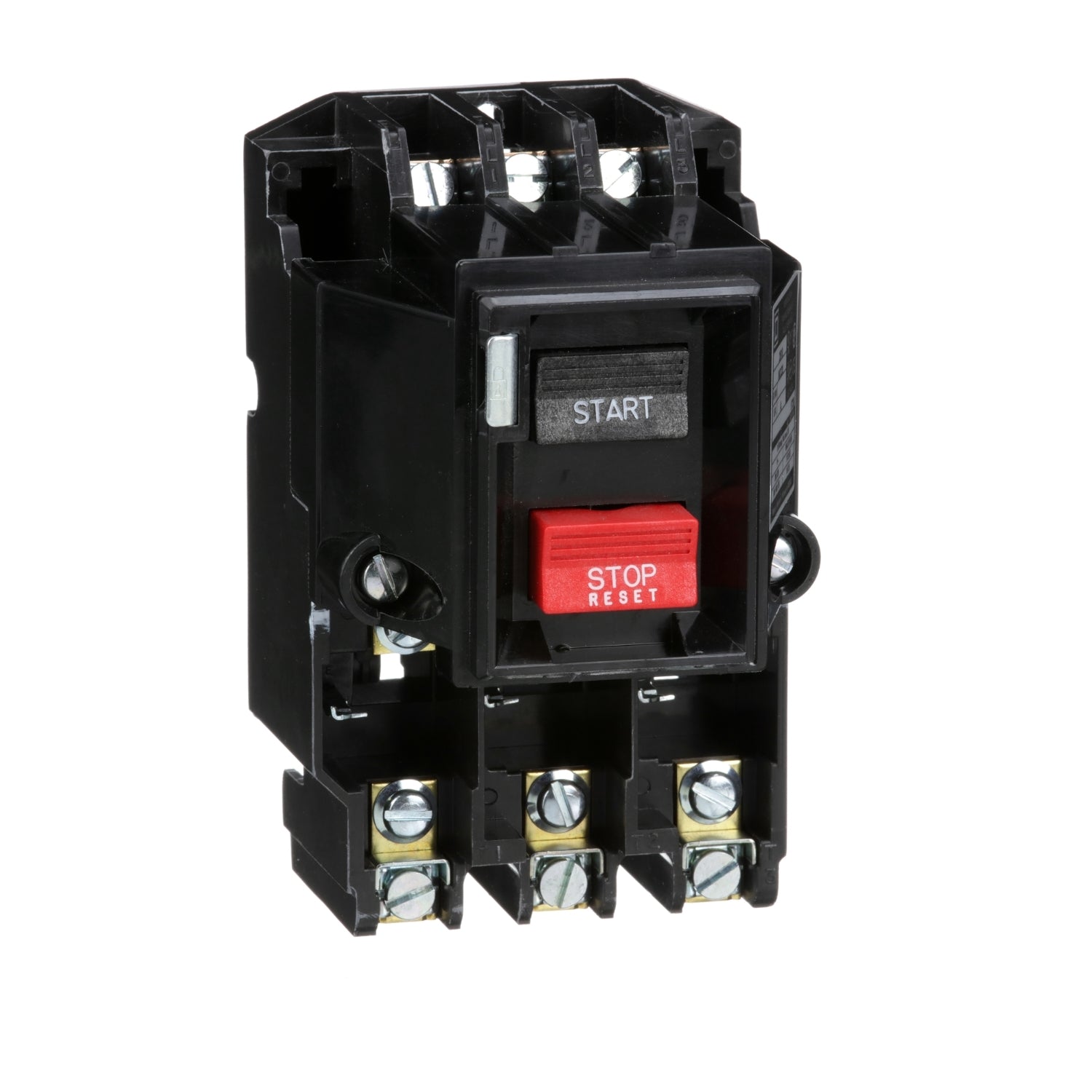

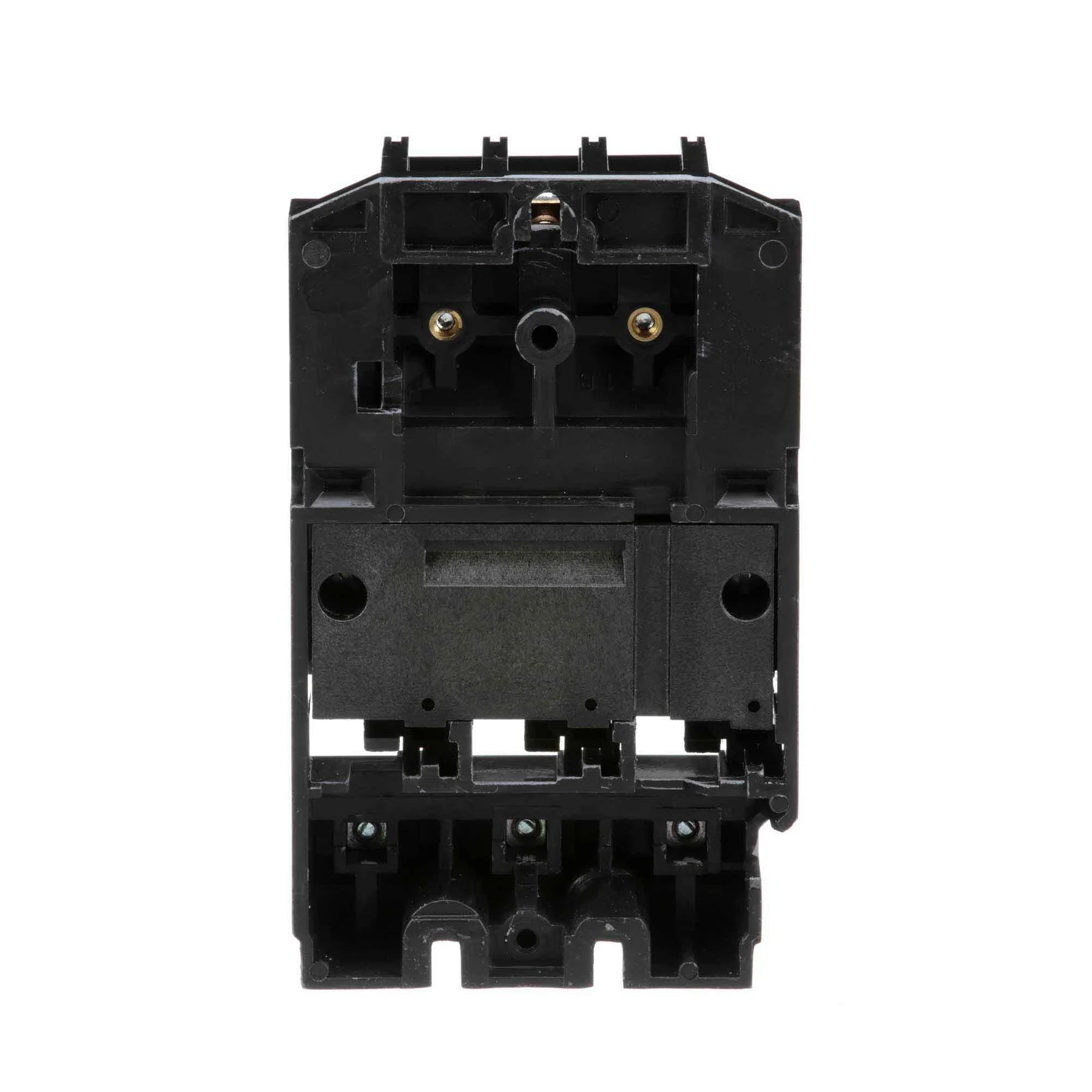

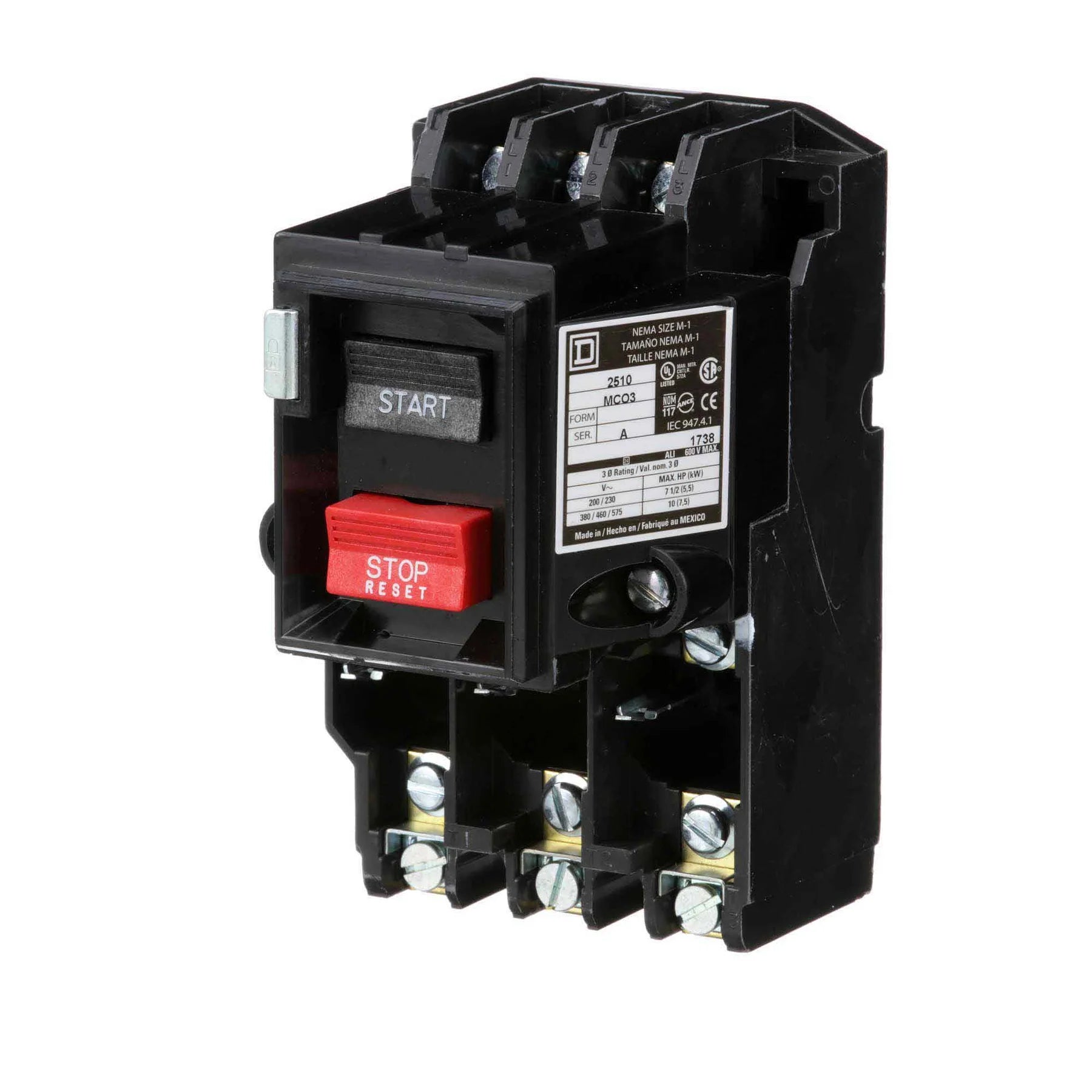

Square D 2510MCO3 Motor Starter, 10HP, 3 Pole, 600VAC, NEMA M1, Open

Square D 2510MCO3 Motor Starter, 10HP, 3 Pole, 600VAC, NEMA M1, Open

Regular price $421.00 CAD
Regular price $750.00 CAD Sale price $421.00 CAD
Sale Sold out

3 in stock

Trusted & Secure Payments

Shop with confidence! Your transactions are protected with industry-standard encryption for a safe and secure checkout experience.

Free GTA Shipping on Orders Over $250

30-Day Return Policy

Thank you for shopping with us! We want you to be completely satisfied with your purchase. If you need to return a product, please review the following guidelines and instructions.


1) Return Window

You may request a return within 30 days of receiving your item.

2) Eligibility

To be eligible, items must be:

New, unused, and uninstalled, in the original packaging with all tags, accessories, manuals, and parts.
In resaleable condition (no markings, labels, writing, or damage to product or packaging).
Accompanied by a receipt or proof of purchase.

Note: Installed/energized electrical products are not returnable. This includes items that have been wired, powered, mounted, cut, crimped, soldered, or modified.

3) Start a Return (RMA Required)

Email info@greenbirdes.com with your order number, item(s), and reason for return.
We’ll review and, if eligible, issue an approval with instructions.
Do not ship items back without an approval — packages without an approval or RMA may be refused.

Unless the return is due to our error (wrong item, DOA/defective, or shipping damage reported on time), return shipping is the customer’s responsibility.

4) Damages, Defects & Shortages

Inspect your order upon delivery. Report shipping damage, defects, or shortages within 48 hours of receipt to info@greenbirdes.com. We will no longer be responsible for claims after this time.

Keep all packaging and take clear photos of the box, packing materials, labels, and the product.
We may coordinate a carrier inspection and provide next steps.
We’ll repair, replace, or refund at our discretion once the claim is validated and the item is returned per instructions.

5) Non-Returnable / Final-Sale Items

Breakers, fuses, and special-order items (including items we do not normally stock, factory builds, and vendor-direct shipments).
Cut-to-length or customized products (e.g., wire/cable cuts, tape/COB light cuts, custom assemblies, made-to-order finishes).
Opened consumables (bulbs/lamps, chemicals, adhesives) and batteries once installed/activated.
Any item installed, modified, or not in original packaging.

If a non-returnable item arrives damaged/defective, report it within the timeframe above so we can assist under the manufacturer or shipping claim process.

6) Restocking Fees

We do not generally charge restocking fees for online returns. However, we reserve the right to apply a 25-50% restocking fee in certain situations:

A return is requested on orders that have already been shipped out or delivered.

The product packaging has been opened or handling is required to restore the item to resaleable condition.

Special-order/vendor-direct items (if permitted by the vendor) may carry a vendor restocking fee of 50% plus any vendor return freight.

All fees are deducted from the refund.

7) Shipping Costs

Outbound shipping is non-refundable.
If your order qualified for “free shipping,” we may deduct our actual outbound shipping cost from the refund.
Return shipping is customer-paid unless the return is due to our error.

8) Exchanges

For the fastest turnaround, return the original item (once approved) and place a new order. We’ll process the return per this policy.

9) Refunds

After the return is received and inspected, we’ll email you the approval status.

Approved refunds are issued to the original payment method within 10 business days.
Your bank or card issuer may require additional time to post the credit.

If more than 15 business days have passed since approval, contact info@greenbirdes.com.

10) Warranties

Many products are covered by a manufacturer’s warranty. If a defect arises after installation/use, contact us with details and proof of purchase; we’ll help initiate a warranty claim per the manufacturer’s terms.

11) Incorrect Address / Refused Delivery

Shipments returned due to incorrect/undeliverable addresses or refused delivery may incur reshipping charges and/or restocking fees.




Green Bird Electric Solutions Inc.
39 Cranfield Rd, East York, ON M4B 1Z1 • +1 (416) 425-7863 • info@greenbirdes.com

Product Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure.

Product Condition

This product is a new surplus item and comes in original packaging. It is fully functional, in excellent condition, and ready for immediate use.

Specifications

Product Type Manual Starter
NEMA Size M-1
Horsepower Rating 7.5 HP (200-230V, 3-phase) / 10 HP (380-575V, 3-phase)
Voltage Rating 600 V AC
Number of Poles 3P
Starter Type Non-reversing
Control Unit Push-button
Pilot Light No indicator
Electrical Connection Pressure wire clamp
Overload Relay Type Melting alloy
Number of Thermal Units Required 3
Wire Gauge AWG 14...AWG 8 (Copper)
Auxiliary Contacts Without
Height 5.72 in (145.29 mm)
Width 3.5 in (88.9 mm)
Depth 4.03 in (102.36 mm)
Net Weight 2.20 lb (1.00 kg)
