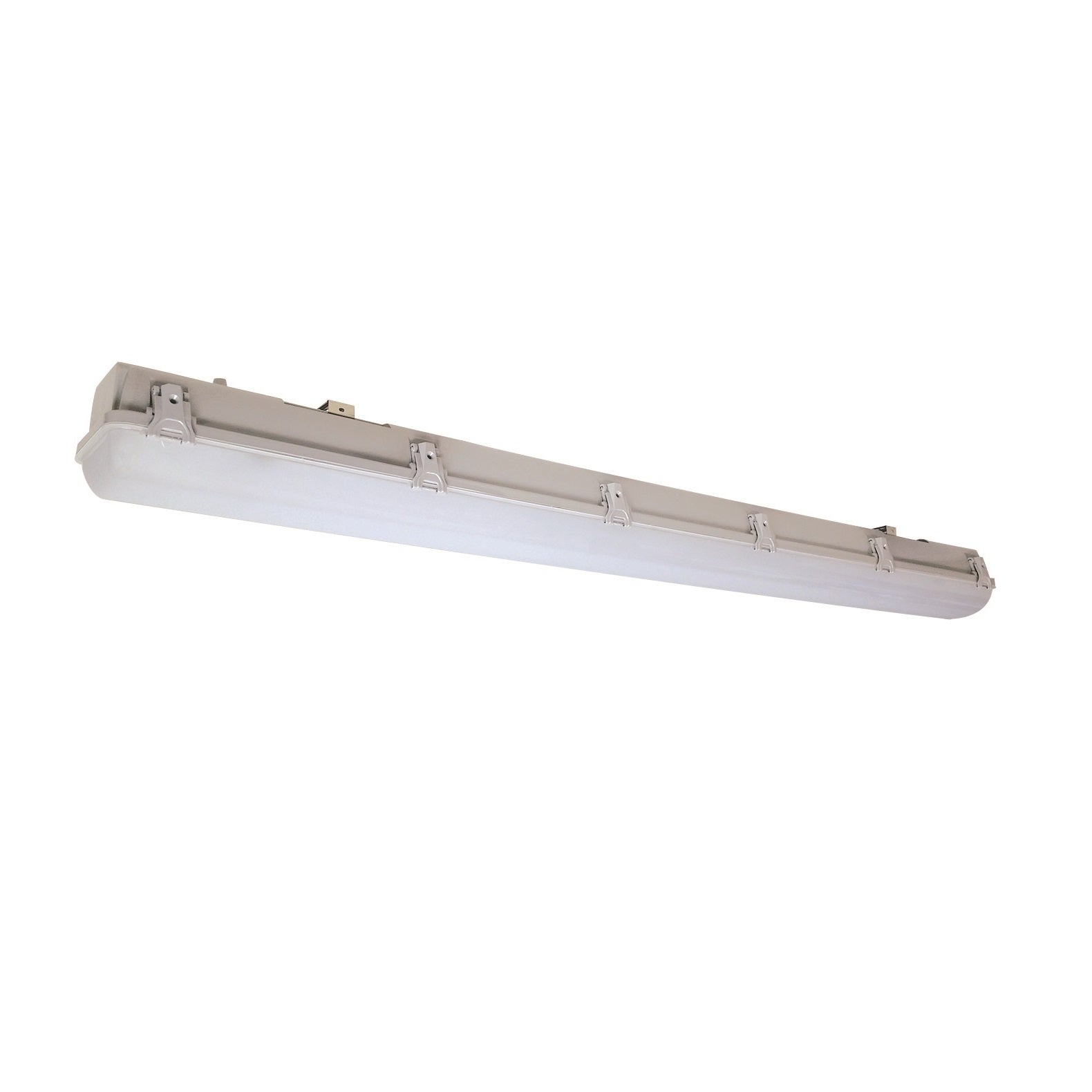

Rab Design 092901 62W Grey 4' Linear Vapourproof fixture | LFX4-LED60-B-5K-GRY-DIM-FS-N4X

Description

Features

Construction

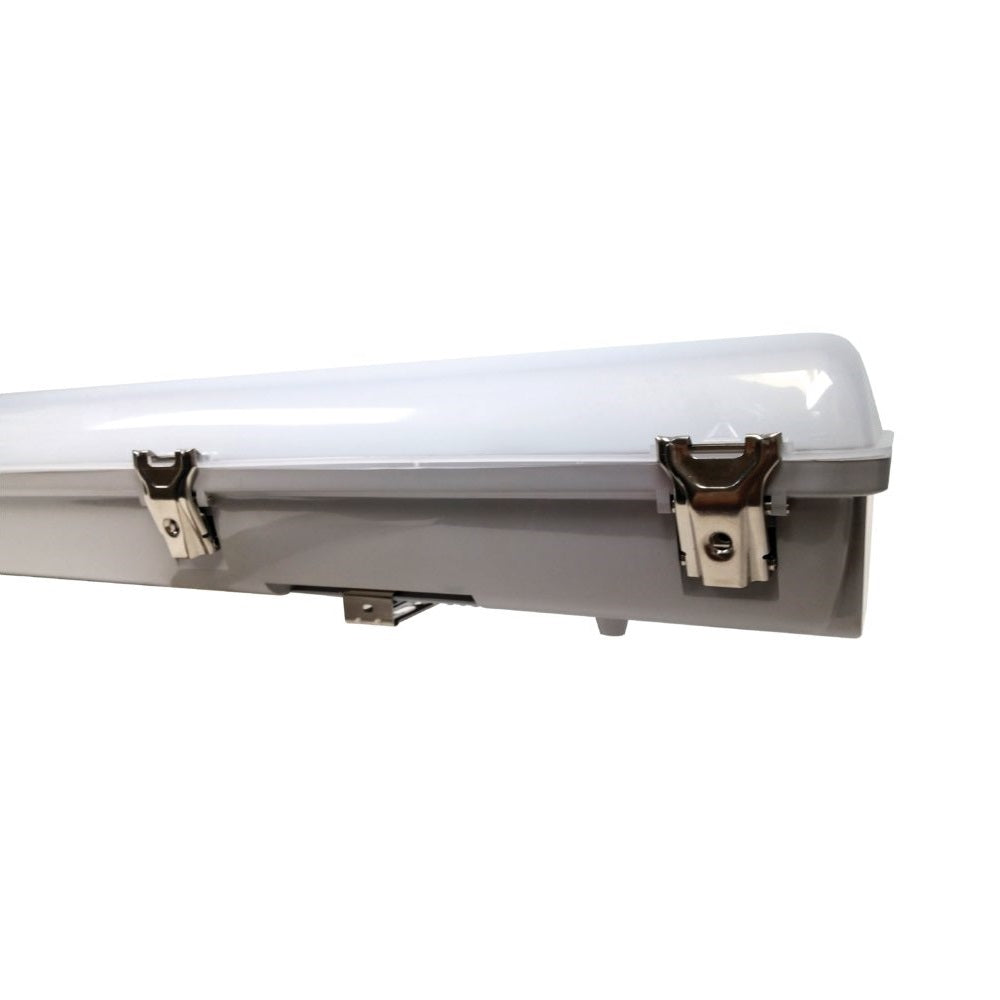

Polycarbonate UV stabilized housing with opal lens. The lens attaches to
the fixture using 6 stainless steel clips on either side. The LFX4-LED60
is ideal for mounting heights between 8’ – 10’ creating a wide even light
distribution because of its rounded opal lens.

Lens
Fixture has a high grade polycarbonate lens that is UV stabilized.
LED information
The fixture contains a high efficiency LED strip that delivers a total
output of 5,379 lumens at an efficacy of 134 lumens/watt. LEDs have
a colour temperature of 4000K as standard, 5000K is available as an
option.

Finish
Grey Polycarbonate Finish

Electrical
Total system wattage of the unit is 62W. The standard unit has a high
efficiency driver that operates at 120 - 277V. 347V is available as an
option.

Mounting
Fixture comes with 2 stainless steel mounting brackets that facilitate
quick and easy mounting direct on the wall or ceiling. Additional
mounting options include suspended chain mount.
There are 4 conduit entries on the bottom and one conduit entry on
either side.

Options
• Integrated High Frequency Sensor
• Battery backup

Specifications

Documents

• RAB_SpecSheet_LFX4-LED40_2021
• LFX48-Install-Instructions-RAB-Eng-Fr-2017-02-21
