Siemens

ID364

ID364

ID364

$850.00 CAD
$850.00 CAD
Sale Sold out

Low stock: 1 left

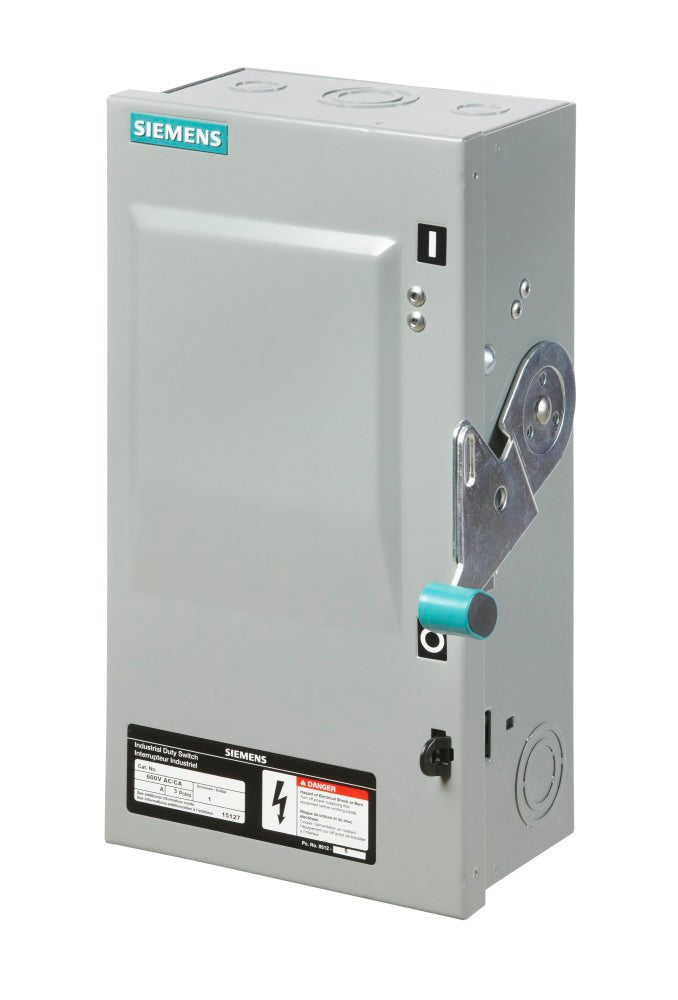

Siemens ID364 Enclosed Fused Industrial Duty Safety Switch, 600/250 VAC/VDC, 200 A, 40 hp, 150 hp, Single Throw Contact, 3 Poles

Features

  • Rugged construction comes from the flip of a switch
  • Provision for cover pad locking
  • Authorized personnel only allowed to open switch
  • Large gutter space
  • Easy cable termination
  • Mounting bracket installed for easy field installation of auxiliary contacts
  • Door interlock
  • Prevents door from opening in 'ON' position
  • Quick make/quick break handle mechanism
  • Smooth, fast arc breaks
  • Industrial duty handle mechanism
  • Optimum performance under rigorous conditions
  • Multiple pad locking provision on handle
  • Additional safety for the service technician
  • 15-3/8 I in H x 9-3/16 in W x 8-1/4 in D
  • 3 fuse



Specifications
Amperage Rating 200
Color Gray
Contact Form Single Throw
Dimensions 15-3/8 in H x 9-3/16 in W x 8-1/4 in D
Enclosure Type EEMAC 1
Horsepower 40 hp, 150 hp
Material Steel
Mounting Type Panel
Number of Poles 3
Phase 3
Type Enclosed Fused
Voltage Rating 600/250
