Siemens

SKU:

ID361NF

ID361NF

Regular price $149.36 CAD
Regular price Sale price $149.36 CAD
Sale Sold out

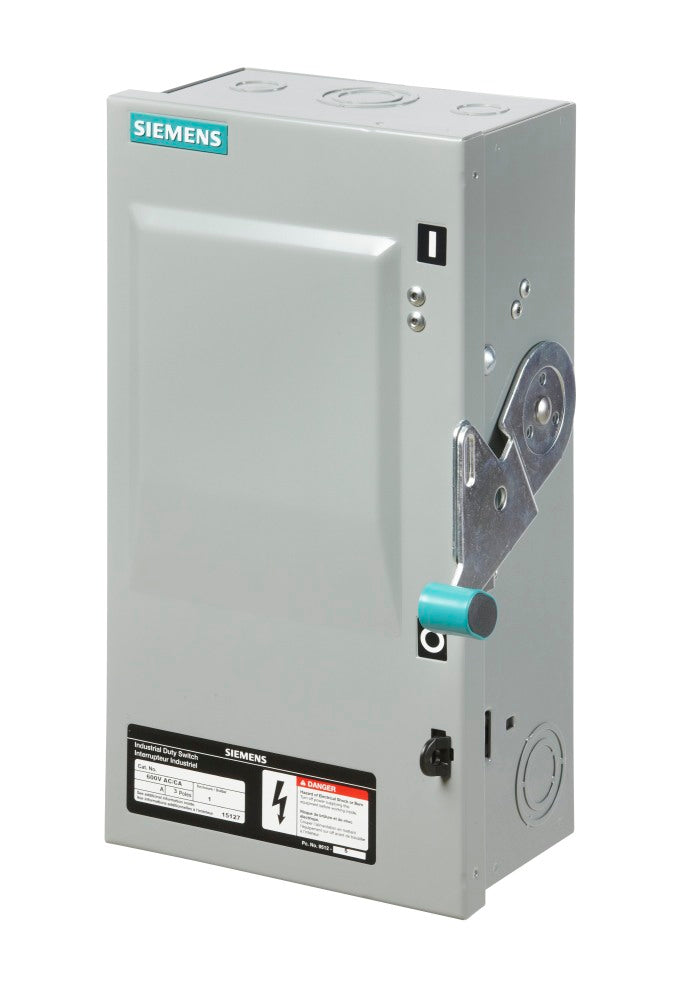

Siemens ID361NF Enclosed Non-Fused Industrial Duty Safety Switch, 600/250 VAC/VDC, 30 A, 5 hp, 30 hp, Single Throw Contact, 3 Poles



Features

  • Rugged construction comes from the flip of a switch
  • Provision for cover pad locking
  • Authorized personnel only allowed to open switch
  • Large gutter space
  • Easy cable termination
  • Mounting bracket installed for easy field installation of auxiliary contacts
  • Door interlock
  • Prevents door from opening in 'ON' position
  • Quick make/quick break handle mechanism
  • Smooth, fast arc breaks
  • Industrial duty handle mechanism
  • Optimum performance under rigorous conditions
  • Multiple pad locking provision on handle
  • Additional safety for the service technician
  • 15-3/8 I in H x 9-3/16 in W x 7-1/4 in D

Specifications
Type Enclosed Non-Fused
Voltage Rating 600/250
Amperage Rating 30
Horsepower 5 hp, 30 hp
Phase 3
Number of Poles 3
Contact Form Single Throw
Enclosure Type EEMAC 1
Mounting Type Panel
Dimensions 15-3/8 in H x 9-3/16 in W x 7-1/4 in D
Material Steel
Color Gray
