FRS-R-100

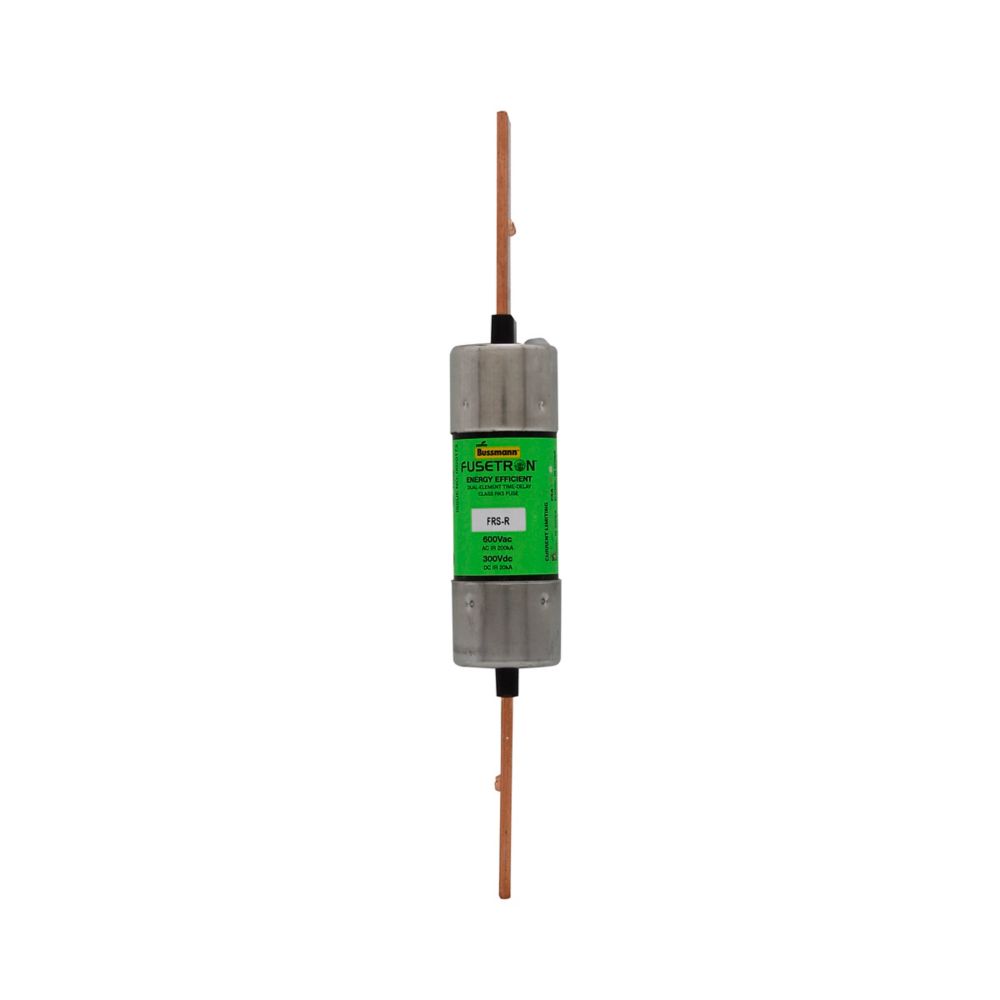

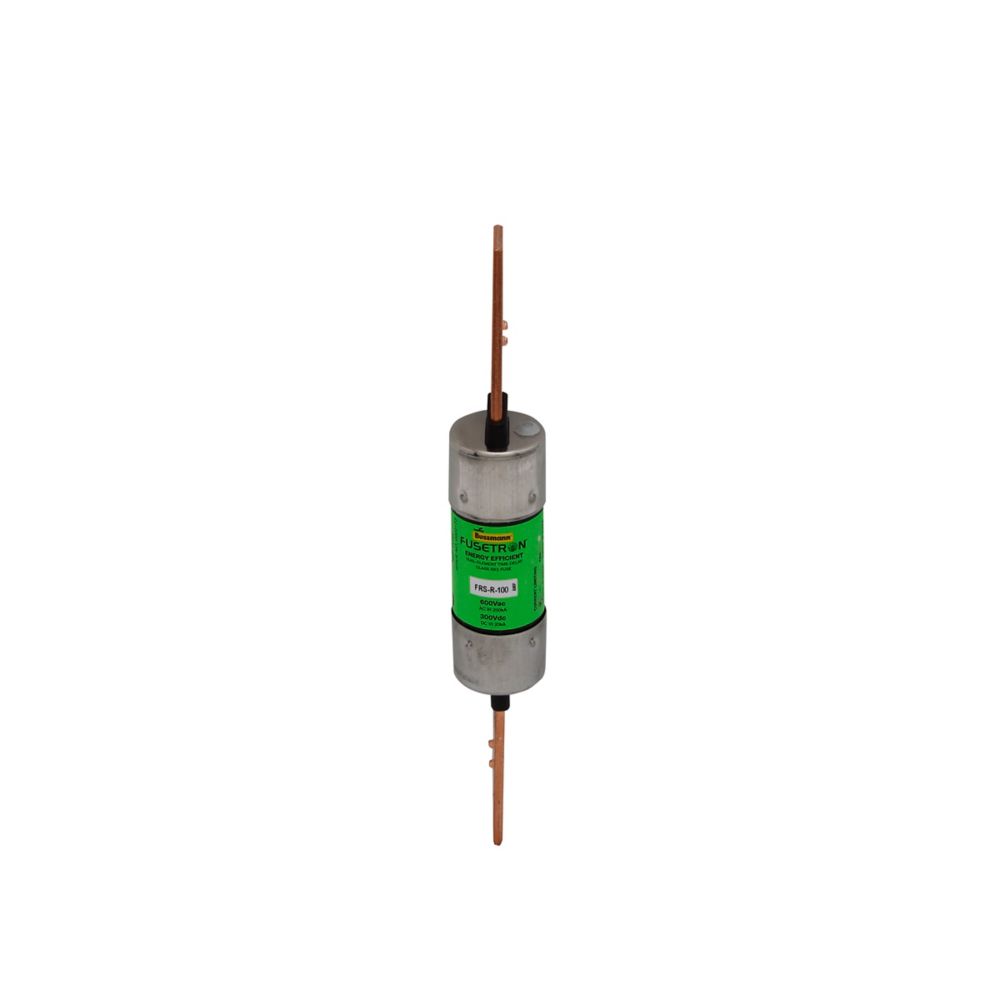

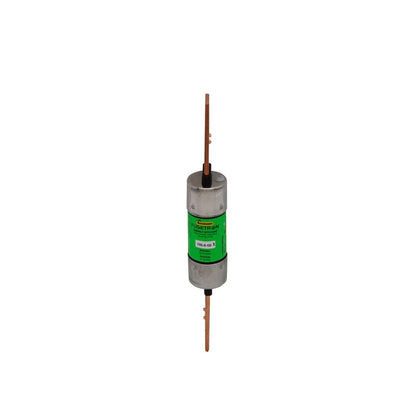

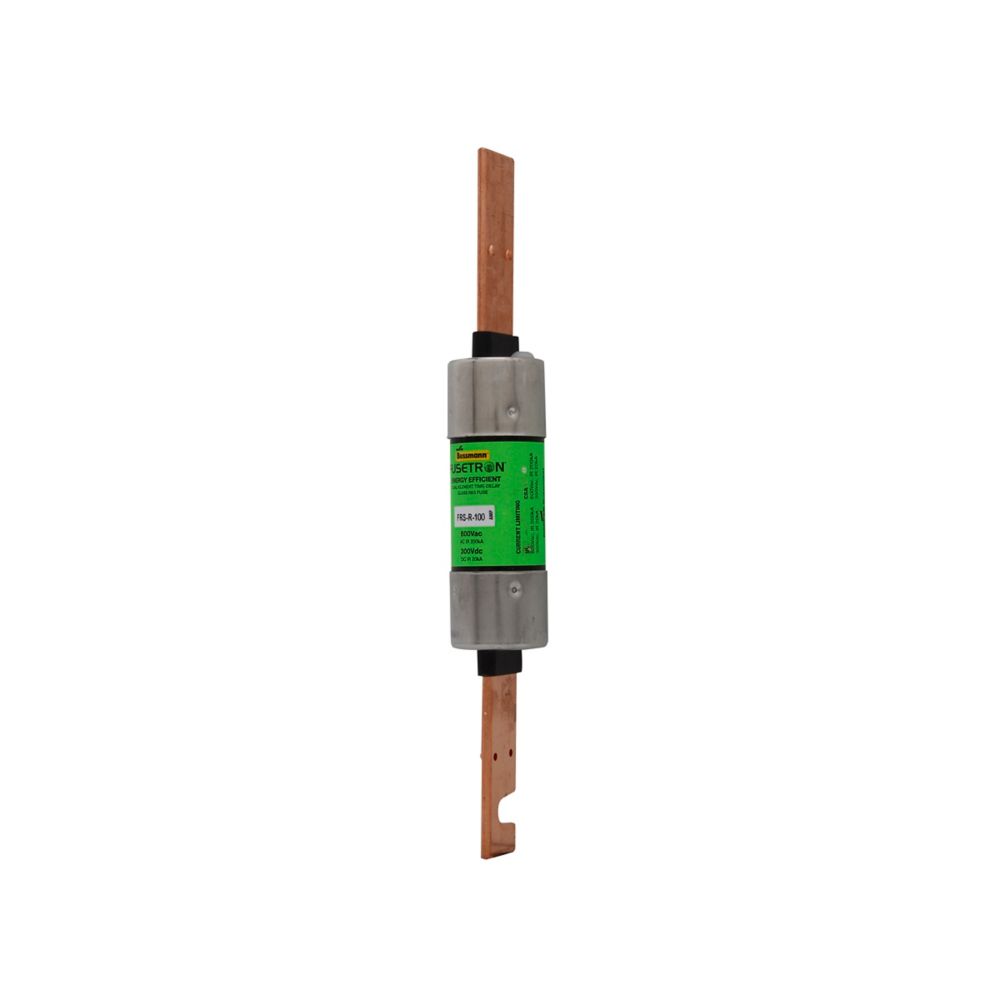

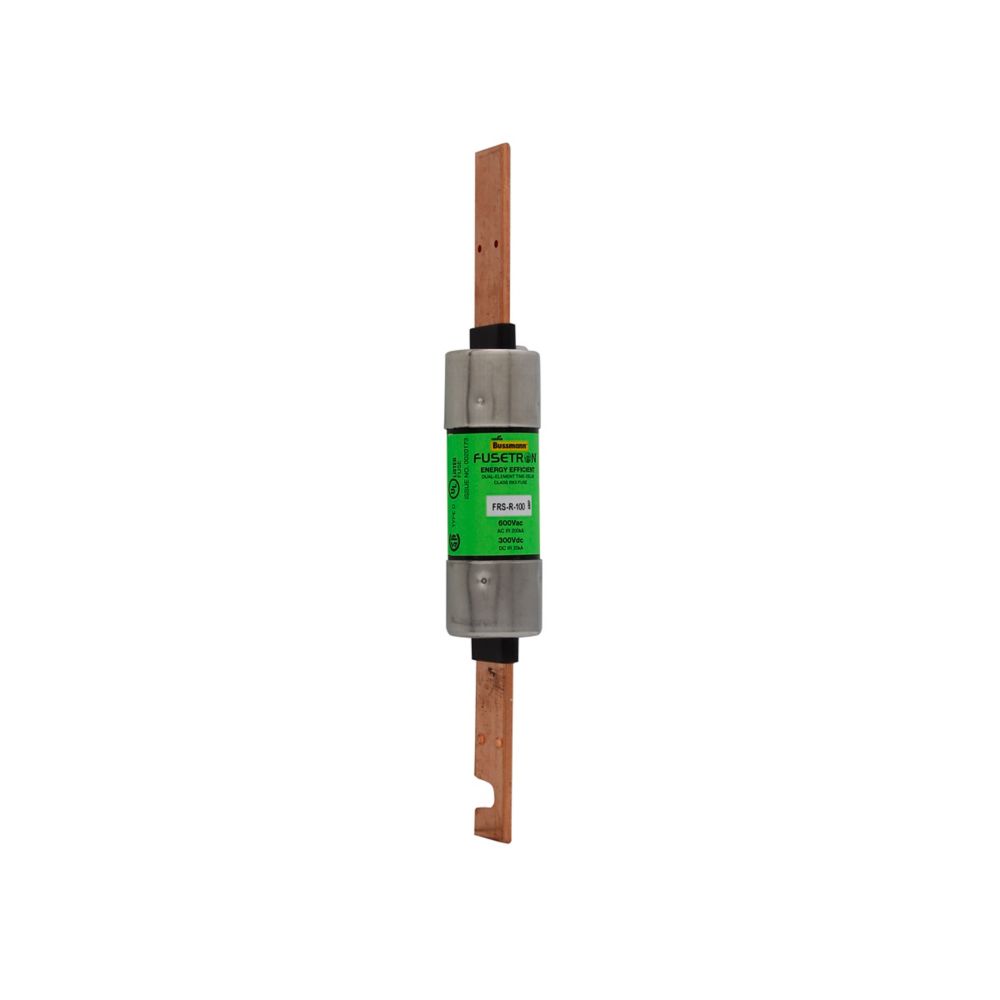

FRS-R-100 | Eaton/Bussmann Class RK5 Time-Delay Fuse 100A 600VAC

FRS-R-100 | Eaton/Bussmann Class RK5 Time-Delay Fuse 100A 600VAC

$29.00 CAD
$40.00 CAD $29.00 CAD
Sale Sold out

In stock

The Eaton Bussmann FRS-R-100 Class RK5 Time-Delay Fuse is designed to provide superior protection for motors, transformers, feeders, and branch circuits. With a 100A rating and 600V capacity, this dual-element fuse safely manages high inrush currents, making it ideal for demanding electrical applications.

Key Features

  • 100A, 600VAC/300VDC time-delay fuse
  • Class RK5 dual-element design for motors and circuits
  • Handles harmless inrush and starting currents safely
  • Current-limiting fuse with high interrupting rating
  • UL Listed, CSA Certified, RoHS compliant
  • Ideal for motor protection, transformers, feeders, and branch circuits

Specifications

Brand Eaton Bussmann
Series FRS-R
Fuse Class Class RK5
Amperage Rating 100A
Voltage Rating 600VAC / 300VDC
Interrupting Rating 200kA at 600VAC
Speed/Type Time-Delay, Dual-Element
Standards UL Listed, CSA Certified, RoHS Compliant
Applications Motors, Transformers, Feeders, Branch Circuits

Documents

View full details

Technical Specifications

Fuse Series:
TR-R
Amperage Rating:
100A
Fuse Class:
Class RK5
Voltage:
600VAC, 300VDC
Fuse Response Type:
Time-Delay
Current Rating (SCCR):
200kA
Fuse Length:
7.88 in
UPC:
051712508438
Manufacturer type:
Genuine
Item condition:
New
