Flextherm by Stelpro | Green Cable Surface XL

Flextherm by Stelpro | Green Cable Surface XL

  • Contact us for availability

Outstanding flexibility

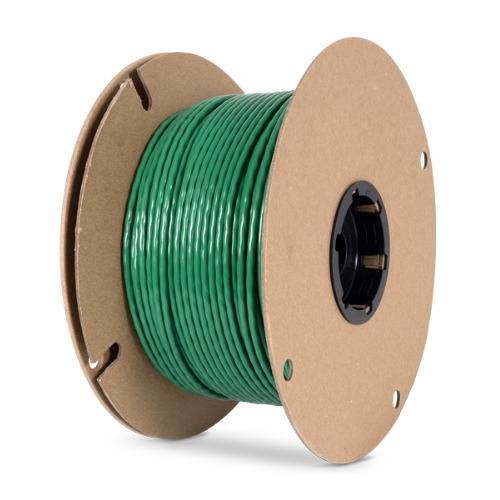

With its constant diameter at every length, the Green Cable Surface XLTM is not only the perfect complement to uncoupling membrane installation systems, but it can also be installed with traditional gauges.

Advantages

  • Easy to install
  • Flexible and robust cable with minimal shape memory
  • Adapts to rooms of all shapes and sizes
  • Maintenance free
  • Energy savingsA heated mass retains heat more easily than air
  • Can be installed indoors in dry or wet environments
  • Complete set, includingHeating cable, cable gauges, hot glue sticks, and installation guide

Advantages

  • Easy to install
  • Flexible and robust cable with minimal shape memory
  • Adapts to rooms of all shapes and sizes
  • Maintenance free
  • Energy savingsA heated mass retains heat more easily than air
  • Can be installed indoors in dry or wet environments
  • Complete set, includingHeating cable, cable gauges, hot glue sticks, and installation guide

MANUFACTURING

  • Heating elements covered with fluoropolymer insulation for greater reliability
  • Paired and twisted dual conductor design to eliminate electromagnetic fields
  • Conductors shielded with a copper braid to ensure safety and robustness
  • Flexible PVC sheath with constant diameter for easy installation

AVAILABLE VOLTAGES

  • 120 V and 240 V

POWERS

  • Cable gauges
    • 3 in.: 14.5 W/ft2
    • Alternated 3-4 in.: 12.4 W/ft2
    • 4 in.: 10.9 W/ft2

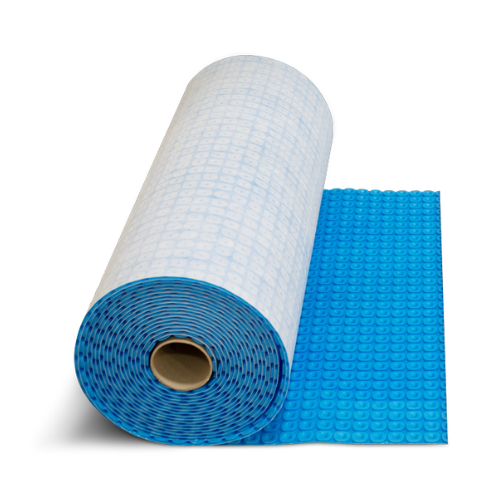

  • Uncoupling membrane
    • Alternated 2-3 studs (2-1/2 – 3-3/4 in.): 13.8 W/ft2
    • 3 studs (3-3/4 in.): 11.5 W/ft2

CONTROL

  • Electronic thermostat for floor heating (sold separately)

INSTALLATION

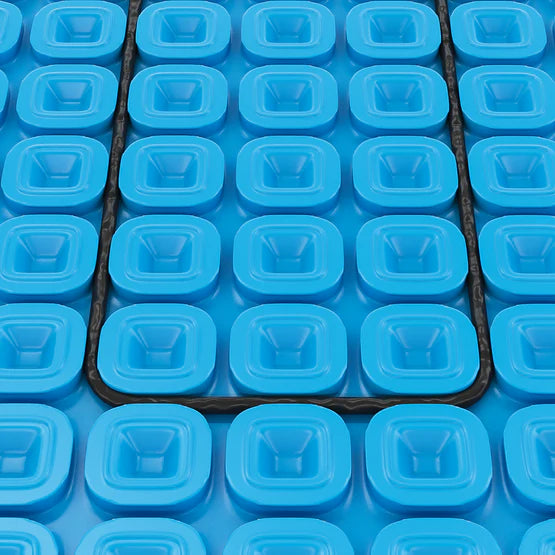

  • Installs in a few easy steps with an uncoupling membrane or the included patented cable spacers
  • Compatible with all subfloors that accept thinset mortar or self-leveling underlayment
  • Compatible with most floor coverings (Validate installation details with the flooring manufacturer)
  • Can be installed in a wet environment, such as a European style shower floor

WARRANTY

  • Twenty-five years*

Specification Sheet

Green Cable Surface XL
