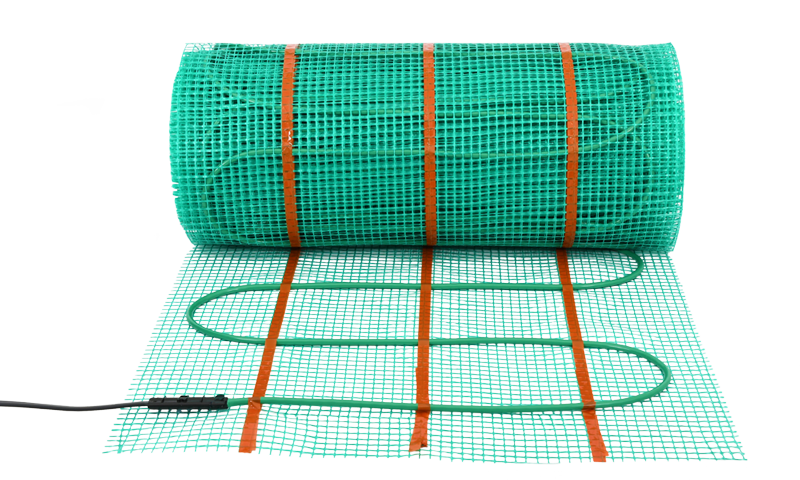

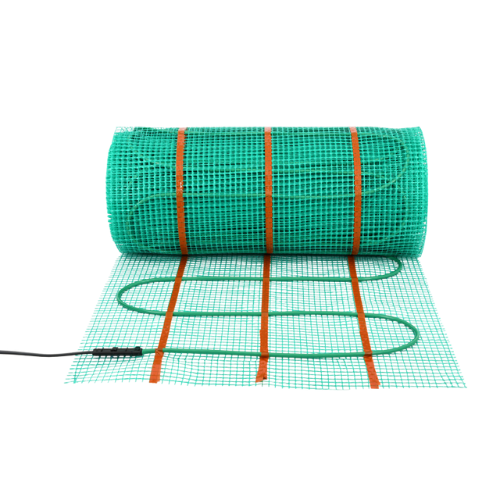

With the simplicity of a self-adhesive backing, the Concrete Mat XpressTM is the ideal choice for any installation embedded in concrete. Simply unroll over the insulation under the concrete slab or over plywood under a concrete topping and you’re done.
Advantages
Specially designed for embedding in concrete
Self-adhesive backing for easy installation
Quick, simple and flexible installation
Heating system with no annual maintenance
Perfect for people with allergiesNo air movement, no dust and no smell
Wide variety of lengths
Advantages
Specially designed for embedding in concrete
Self-adhesive backing for easy installation
Quick, simple and flexible installation
Heating system with no annual maintenance
Perfect for people with allergiesNo air movement, no dust and no smell
Wide variety of lengths
MANUFACTURING
Heating elements covered with fluoropolymer insulation for greater reliability
Paired and twisted dual conductor design to eliminate electromagnetic fields
Conductors shielded with a copper braid to ensure safety and robustness
Extra-strong flexible PVC sheath to withstand concrete pouring
POWERS AND VOLTAGES
12 W/ft2 at 240 V
9 W/ft2 at 208 V
CONTROL
Electronic thermostat for heated floor (sold separately)
Note: This product must be used with a ground fault circuit interrupter (GFCI) unless this is not required by the national or local code in the region where it is being installed.
INSTALLATION
Never cut the cable
For indoor residential, commercial, institutional and industrial applications only
Can be installed under a 4 to 6 in. (10 to 15 cm) concrete slab or under a 1.5 to 4 in. (4 to 10 cm) concrete floor topping
Compatible with most floor coverings*
Can be installed with or without a wire mesh or rebar for reinforced concrete
Supplied materials: plastic floor anchors, 15 ft (4.5 m) floor sensor, installation guide and electrical panel label
