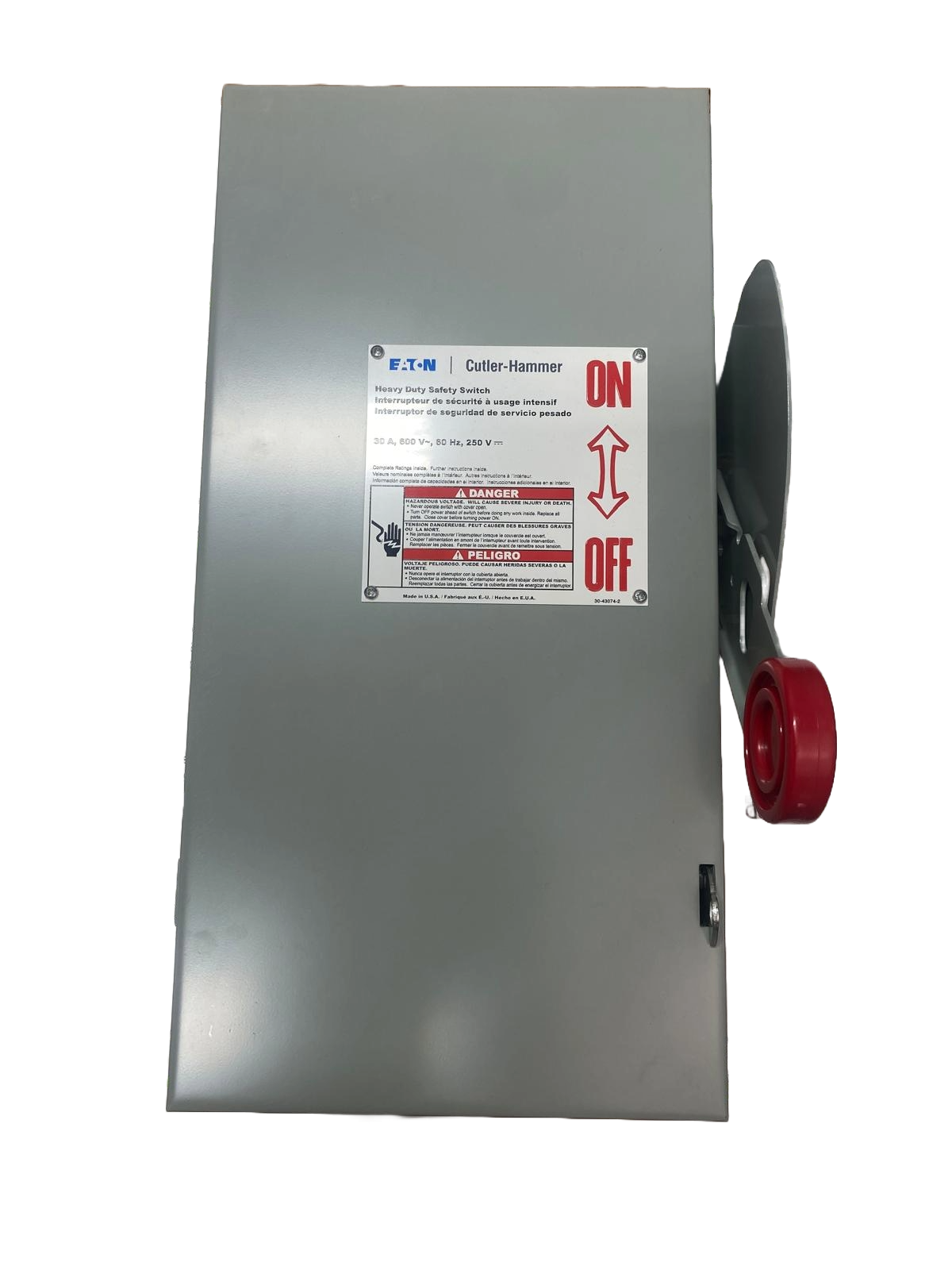

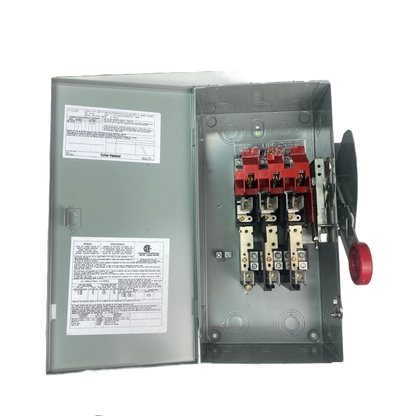

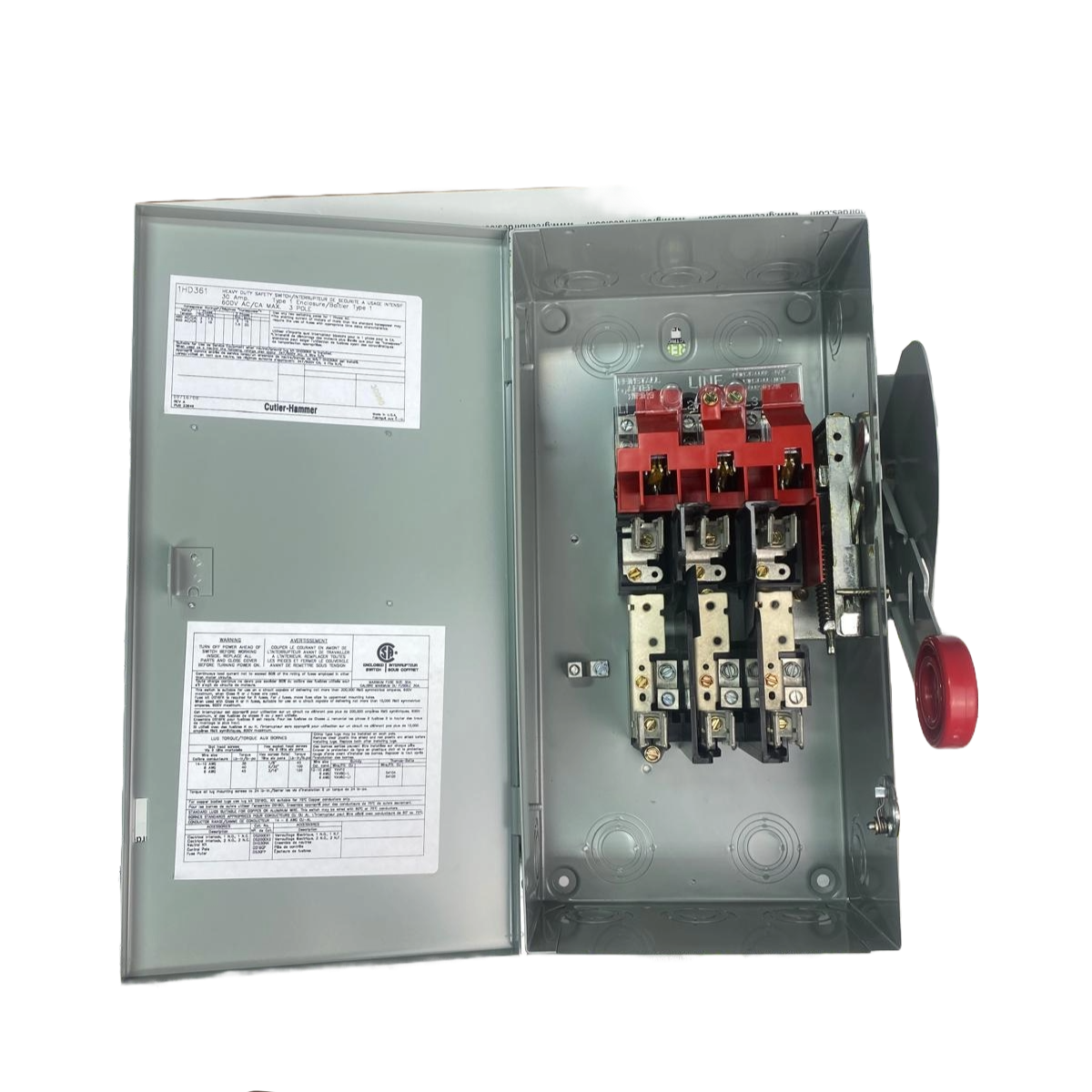

Eaton 1HD361 Disconnect, 30 Amp, 3 Pole, 600V, Fusible, NEMA 1
Eaton 1HD361 Disconnect, 30 Amp, 3 Pole, 600V, Fusible, NEMA 1
Low stock: 1 left
Couldn't load pickup availability
Trusted & Secure Payments
Trusted & Secure Payments
Shop with confidence! Your transactions are protected with industry-standard encryption for a safe and secure checkout experience.
Manufacturer Disclaimer
Manufacturer Disclaimer
Green Bird Electric Solutions Inc. is not an authorized dealer, distributor, or affiliate for the manufacturers of this product. Some products offered on our website are surplus items and may have older date codes or be from an older series than what is currently available directly from the manufacturer or authorized dealers.
Because we are not an authorized distributor for these products, the original Manufacturer’s warranty does not apply. These items are sold as-is, and while we ensure they are fully functional and in accurate condition at the time of sale, we do not provide warranty. All sales of surplus items are considered final.
All product names, trademarks, brands, and logos are the property of their respective owners and are used for identification purposes only.
Product Description
The Eaton 1HD361 Disconnect is a heavy-duty safety switch designed for reliable performance in commercial, institutional, and industrial environments. This fusible, single-throw safety switch provides dependable circuit protection with a 30 Amp capacity and is rated for 600 VAC and 250 VDC. Its painted steel enclosure is rated NEMA 1 for indoor use, making it ideal for various indoor applications.
Key Features:
- 30 Amp, 3 Pole configuration for versatile use
- Heavy-duty, fusible, single-throw design for enhanced safety
- Compatible with Class H fuses for circuit protection
- NEMA 1 painted steel enclosure for indoor applications
- Rated for 7.5 HP at 480V (1-phase) and up to 20 HP at 600V (3-phase)
- Compact design for easy installation: 8.13 in W x 9.89 in D x 15.88 in H
Specifications
| Brand | Cutler-Hammer (Eaton) |
| Model | 1HD361 |
| Type | Heavy Duty, Fusible, Single Throw |
| Voltage Rating | 600 VAC, 250 VDC |
| Amperage Rating | 30 Amp |
| Load Rating | 7.5 HP at 480 VAC (1-Phase), 10 HP at 600 VAC (1-Phase), 15 HP at 480 VAC (3-Phase), 20 HP at 600 VAC (3-Phase) |
| Number of Poles | 3 |
| Fuse Type | Class H |
| Housing Material | Painted Steel |
| Enclosure Rating | NEMA 1 (Indoor Use) |
| Dimensions | 8.13 in W x 9.89 in D x 15.88 in H |
| Application | Commercial, Institutional, Industrial |
