CHKO664 | Hammond Steel Enclosure w/ Hinge Door, 6 in x 6 in x 4 in

Type 1 Mild Steel Junction Box CHKO Series

N1 Hinge Door with Quarter Turn and w/ Knockouts 6 in x 6 in x 4 in

Application

• Designed for general purpose indoor commercial use as a junction, pull or switch box.
• Hinged cover with latch provides easy access during installation and maintenance.

Standards

• UL-50 Type 1
• CSA Type 1
• Complies with
  • NEMA Type 1
  • IEC 60529, IP20

Construction

• Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
• Formed steel covers close by use of slotted quarter turn latch.

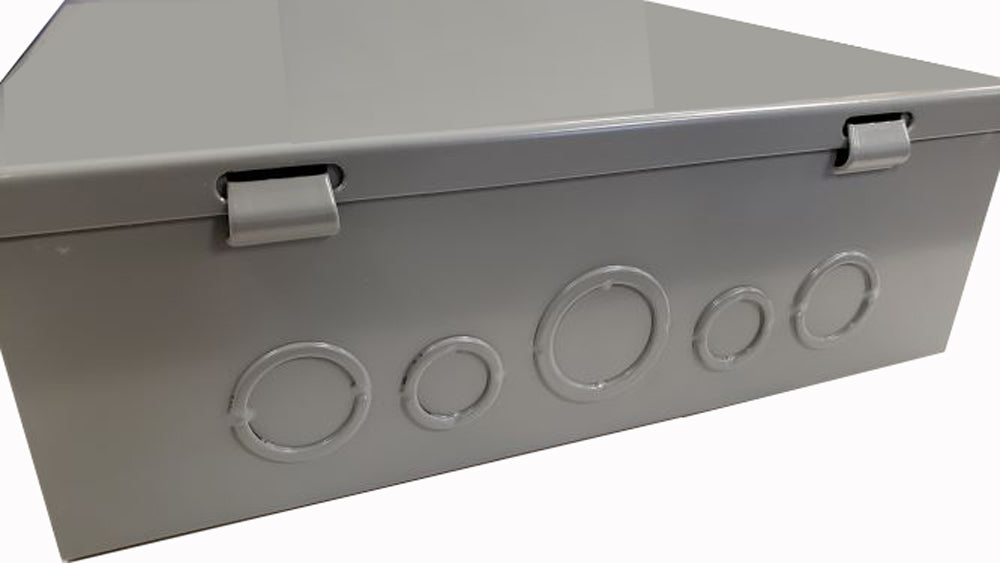

• Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
• Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
• Through holes in back for wall mounting.
• Grounding location embossed in body.

Finish

• Enclosure and cover are finished in ANSI 61 gray powder coating.
