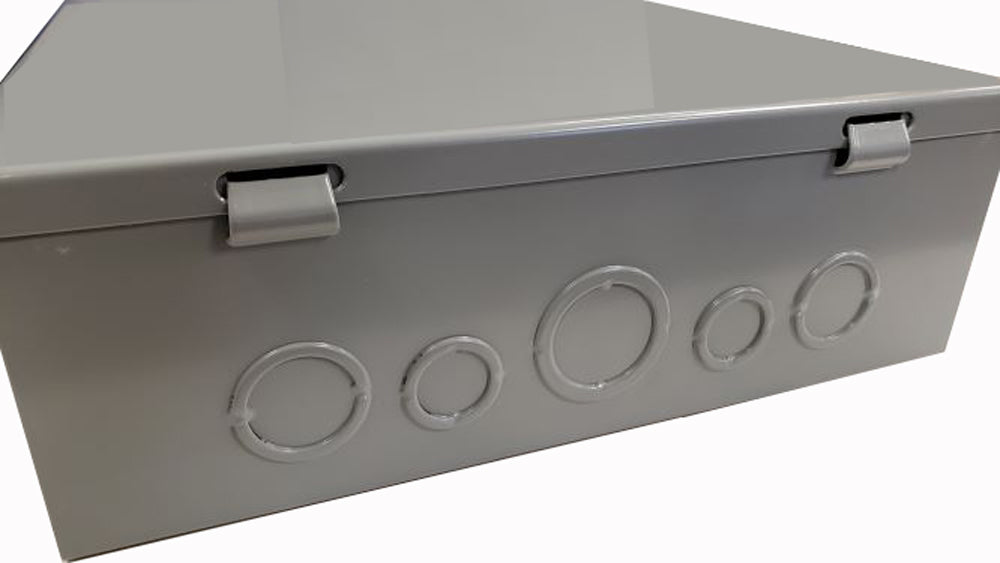

Type 1 Mild Steel Junction Box CHKO Series

N1 Hinge Door with Quarter Turn and w/ Knockouts 12 in x 12 in x 4 in

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.
  • Hinged cover with latch provides easy access during installation and maintenance.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
  • Formed steel covers close by use of slotted quarter turn latch.
  • Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are finished in ANSI 61 gray powder coating.
      Size H x W x D 12 in x 12 in x 4 in
      (305 mm x 305 mm x 102 mm)
      Shipping Weight 10 lbs (4.54 kg)
      UNSPSC 39121324
      UPC 623980361062
      UL File # E65324
      CSA Cert. # LR21001
      REACH Compliant Yes
      RoHS Compliant Yes
